Water Softener

Cleaver Brooks Water Softener

• Water softener – Simplex, duplex and triplex
• Sized from 20,000 to 1,500,000 grains exchange capacity
• Flow rates from 2 to 450 gpm
• Tanks of FRP plastic or steel
• Simplex , Duplex water softener with EDS control

Removing hardness also reduces the need for expensive chemical treatment to control scale.  Cleaver-Brooks water softeners are available in package design for virtually any commercial or industrial application.  A water softener is recommended whenever raw hardness exceeds 1 ppm.  Water softeners are available for boilers of all sizes, including multiple boiler applications, steam or hot water.

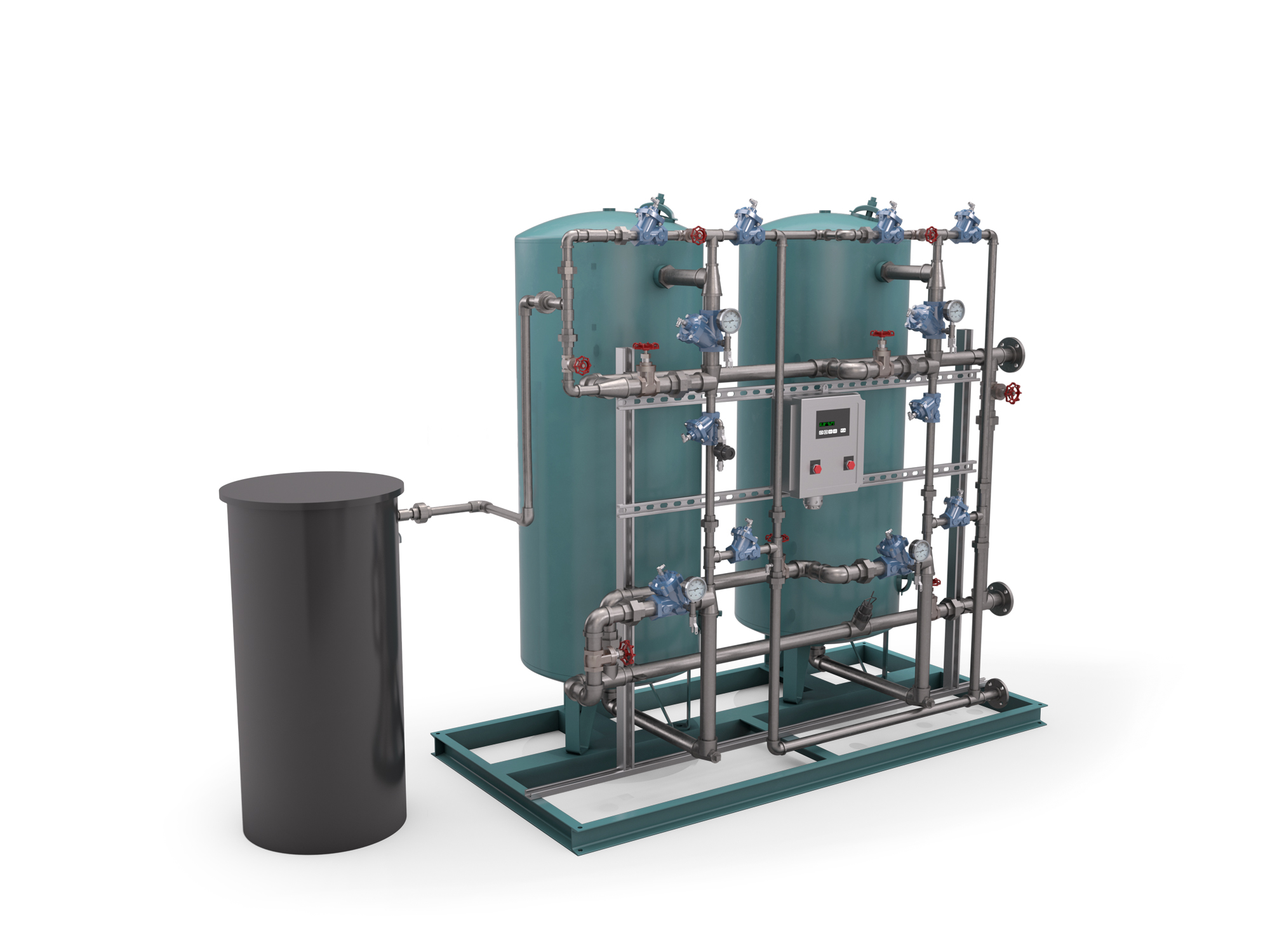

Models SMR and FMR
Available in single-, twin- or triplex tank designs and include resin tank(s), brine tank, face-piping, diaphragm valve nest and cycle controller.  They feature carbon steel tanks with epoxy lined interiors and utilizes water activated diaphragm valves and an electronic controller.

Features:

• Sized from 20,000 to 1,500,000 grains exchange capacity
• Flow rates from 2 to 450 gpm
• Galvanized steel exterior pipling with cast iron fittings
• NEMA 4 electrical enclosures
• Optional skid mounted and pre-piped, pre-wired systems
• Optional ASME code stamped tanks

Model CRS
Crossover twin alternating systems with plastic tanks and a single top-mounted valve that controls both tanks. Includes resin tanks, brine tank, single valve with CRS controller and interconnecting piping. They provide a continuous supply of softened water with one tank in service and one tank in either regenerating or in standby.  Solid-state CRS controls provide a simple, reliable operation.

Features:

• Sized from 15,000 to 450,000 grains exchange capacity
• Flow rates from 12 to 45 gpm
• Tank sizes 7″ to 30″ diameter
• Operating temperatures: 40° to 100°F
• Water meter for automatic regeneration
• Optional skid mounted
